药学数据模型构建6--TCN

构建一个简单 TCN 模型，通过加更改训练数据比例、调整训练参数等对比模型预测效果。

	class Chomp1d(nn.Module):
	def __init__(self, chomp_size):
	super(Chomp1d, self).__init__()
	self.chomp_size = chomp_size

	def forward(self, x):
	"""
	其实这就是一个裁剪的模块，裁剪多出来的padding
	"""
	return x[:, :, :-self.chomp_size].contiguous()


	class TemporalBlock(nn.Module):
	def __init__(self, n_inputs, n_outputs, kernel_size, stride, dilation, padding, dropout=0.2):
	"""
	相当于一个Residual block

	:param n_inputs: int, 输入通道数
	:param n_outputs: int, 输出通道数
	:param kernel_size: int, 卷积核尺寸
	:param stride: int, 步长，一般为1
	:param dilation: int, 膨胀系数
	:param padding: int, 填充系数
	:param dropout: float, dropout比率
	"""
	super(TemporalBlock, self).__init__()
	self.conv1 = weight_norm(nn.Conv1d(n_inputs, n_outputs, kernel_size,
	stride=stride, padding=padding, dilation=dilation))
	# 经过 conv1，输出的 size 其实是 (Batch, input_channel, seq_len + padding)
	self.chomp1 = Chomp1d(padding) # 裁剪掉多出来的 padding 部分，维持输出时间步为 seq_len
	self.relu1 = nn.ReLU()
	self.dropout1 = nn.Dropout(dropout)

	self.conv2 = weight_norm(nn.Conv1d(n_outputs, n_outputs, kernel_size,
	stride=stride, padding=padding, dilation=dilation))
	self.chomp2 = Chomp1d(padding) # 裁剪掉多出来的 padding 部分，维持输出时间步为 seq_len
	self.relu2 = nn.ReLU()
	self.dropout2 = nn.Dropout(dropout)

	self.net = nn.Sequential(self.conv1, self.chomp1, self.relu1, self.dropout1,
	self.conv2, self.chomp2, self.relu2, self.dropout2)
	self.downsample = nn.Conv1d(n_inputs, n_outputs, 1) if n_inputs != n_outputs else None
	self.relu = nn.ReLU()
	# self.init_weights()

	def init_weights(self):
	"""
	参数初始化

	:return:
	"""
	self.conv1.weight.data.normal_(0, 0.01)
	self.conv2.weight.data.normal_(0, 0.01)
	if self.downsample is not None:
	self.downsample.weight.data.normal_(0, 0.01)

	def forward(self, x):
	"""
	:param x: size of (Batch, input_channel, seq_len)
	:return:
	"""
	out = self.net(x)
	res = x if self.downsample is None else self.downsample(x)
	return self.relu(out + res)


	class TemporalConvNet(nn.Module):
	def __init__(self, num_inputs, num_channels, kernel_size=2, dropout=0.2):
	"""
	TCN，目前paper给出的TCN结构很好的支持每个时刻为一个数的情况，即sequence结构，
	对于每个时刻为一个向量这种一维结构，勉强可以把向量拆成若干该时刻的输入通道，
	对于每个时刻为一个矩阵或更高维图像的情况，就不太好办。

	:param num_inputs: int，输入通道数
	:param num_channels: list，每层的hidden_channel数，例如[25,25,25,25]表示有4个隐层，每层hidden_channel数为25
	:param kernel_size: int, 卷积核尺寸
	:param dropout: float, drop_out比率
	"""
	super(TemporalConvNet, self).__init__()
	layers = []
	num_levels = len(num_channels)
	for i in range(num_levels):
	dilation_size = 2 ** i # 膨胀系数：1，2，4，8……
	in_channels = num_inputs if i == 0 else num_channels[i-1] # 确定每一层的输入通道数
	out_channels = num_channels[i] # 确定每一层的输出通道数
	layers += [TemporalBlock(in_channels, out_channels, kernel_size, stride=1, dilation=dilation_size,
	padding=(kernel_size-1) * dilation_size, dropout=dropout)]

	self.network = nn.Sequential(*layers)

	def forward(self, x):
	"""
	输入x的结构不同于RNN，一般RNN的size为(Batch, seq_len, channels)或者(seq_len, Batch, channels)，
	这里把seq_len放在channels后面，把所有时间步的数据拼起来，当做Conv1d的输入尺寸，实现卷积跨时间步的操作，
	很巧妙的设计。

	:param x: size of (Batch, input_channel, seq_len)
	:return: size of (Batch, output_channel, seq_len)
	"""
	return self.network(x)


	class TCN(nn.Module):
	def __init__(self, input_size, output_size, num_channels, kernel_size, dropout):
	super(TCN, self).__init__()
	self.tcn = TemporalConvNet(input_size, num_channels, kernel_size = kernel_size, dropout = dropout)
	self.linear = nn.Linear(num_channels[-1], output_size)

	def forward(self, x, option):
	# x(batch_size, seq_len, input_size)
	x = x.permute(0, 2, 1)
	# x(batch_size, input_size, seq_len)
	if option == 1:
	y = self.tcn(x)#[N,C_out,L_out=L_in]
	y = self.linear(y[:, :, -1])
	else:
	raise ValueError("option 输入不合法")
	return y

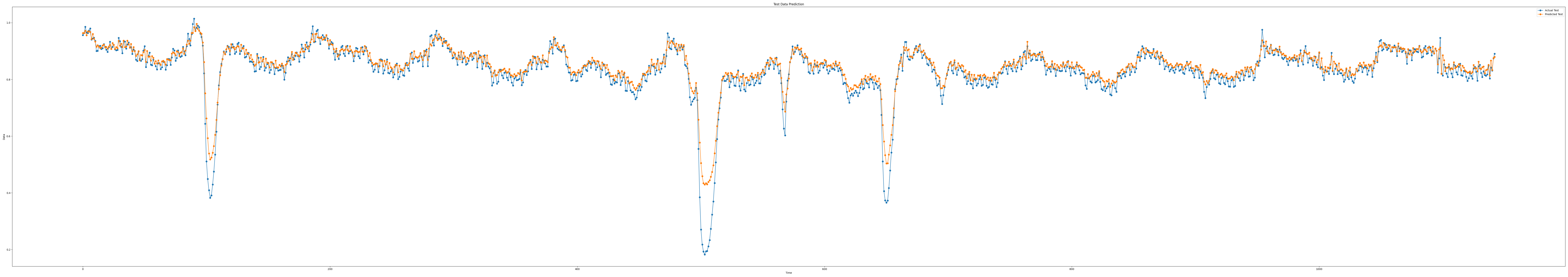

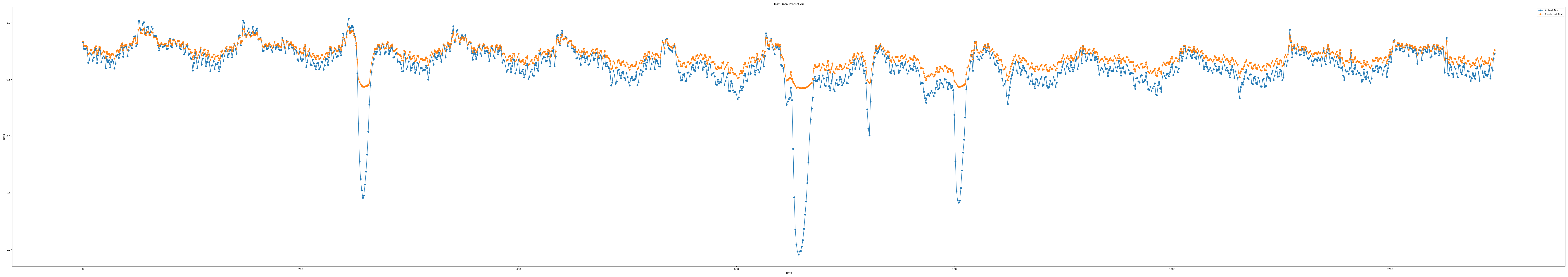

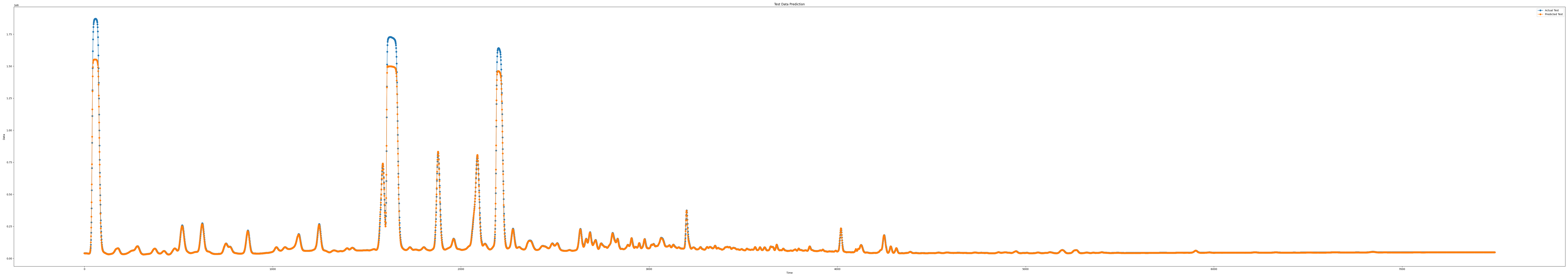

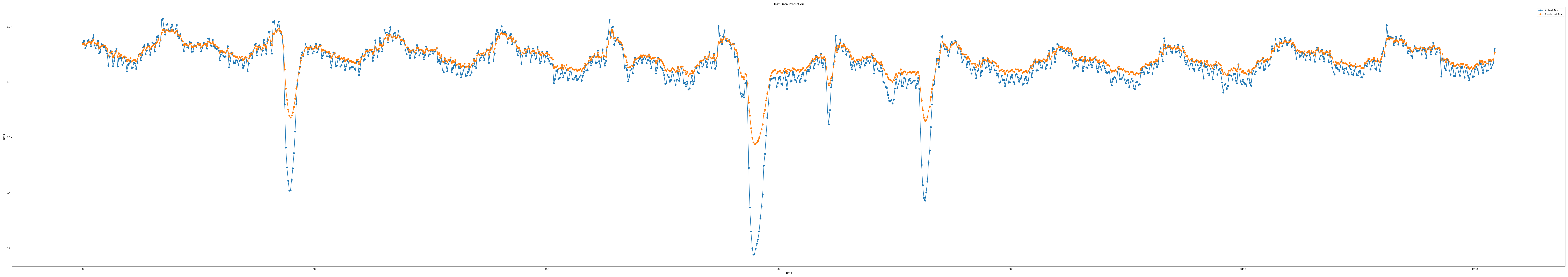

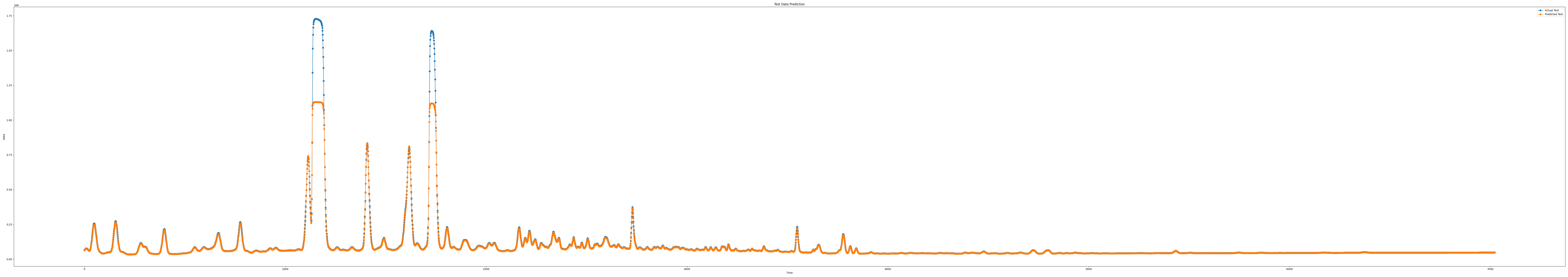

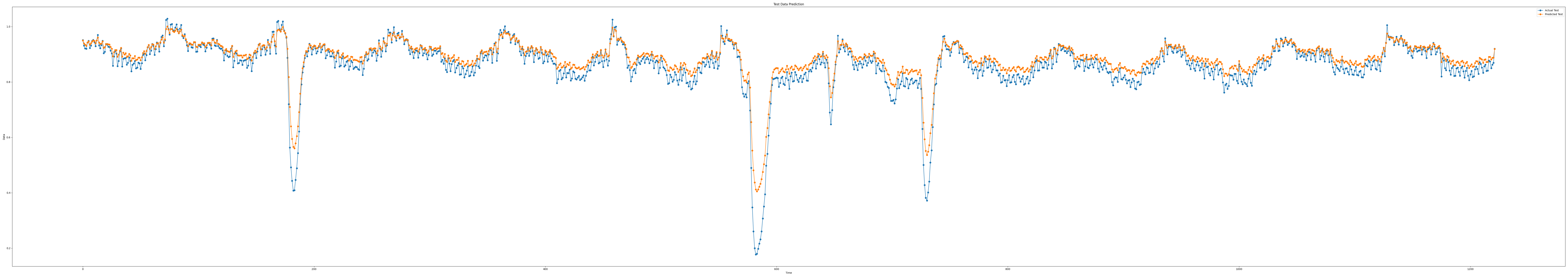

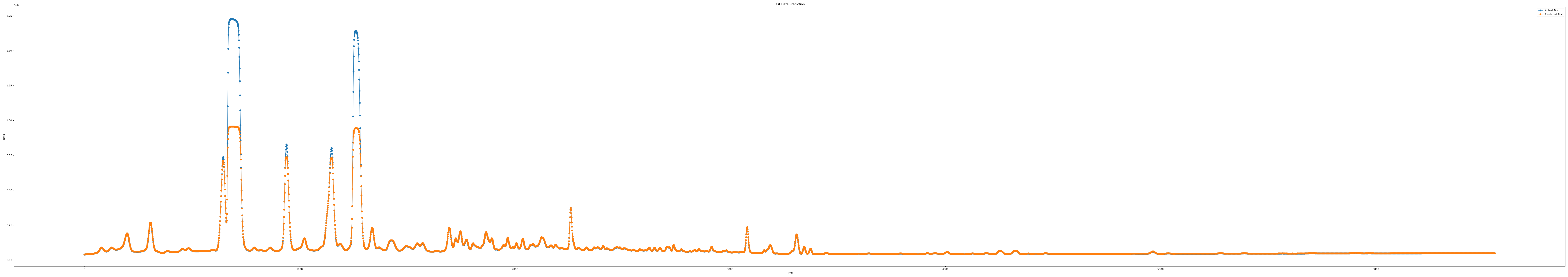

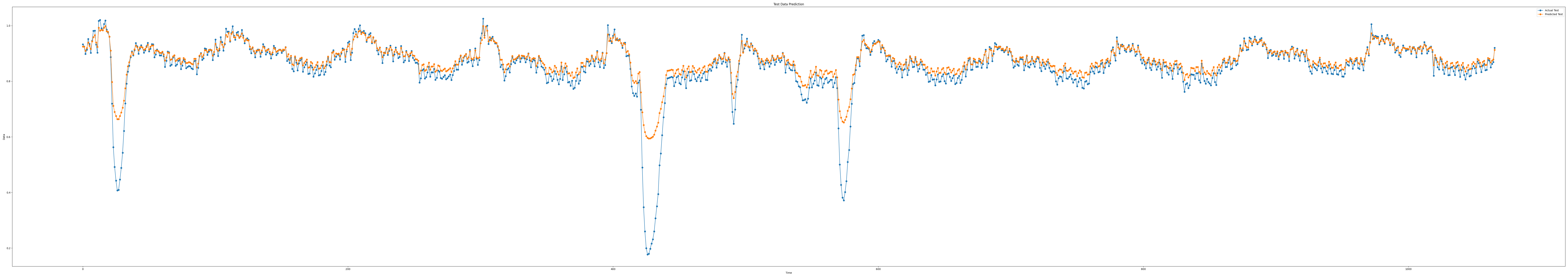

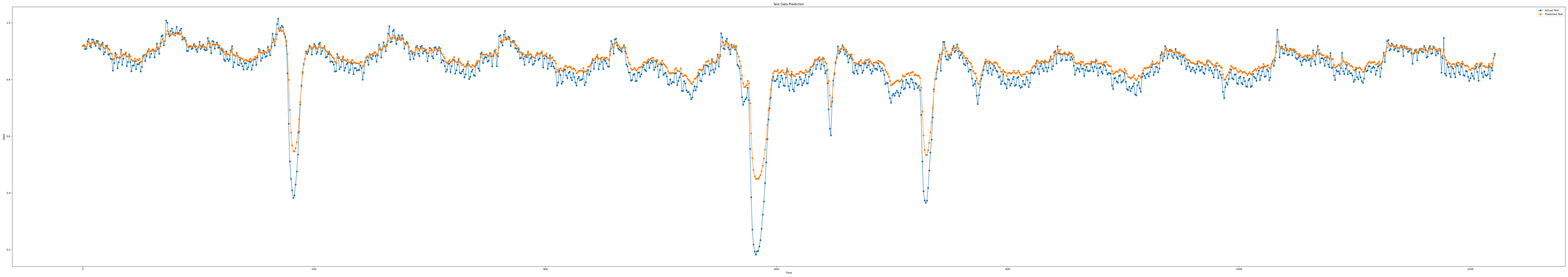

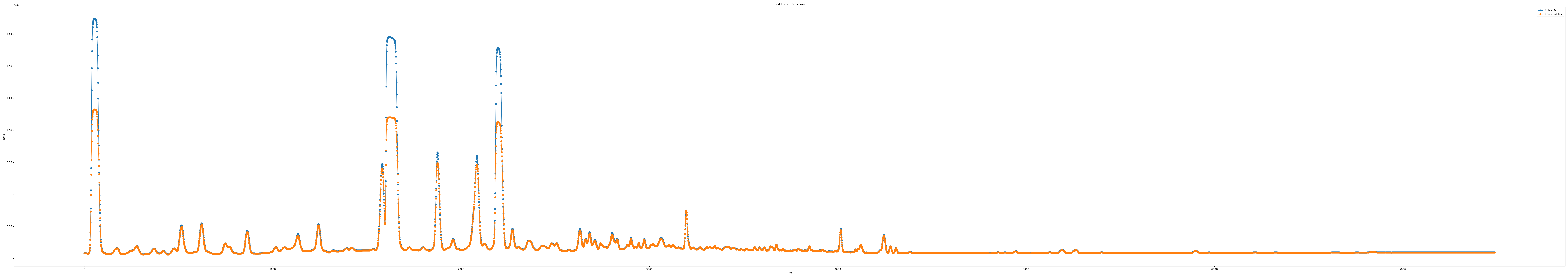

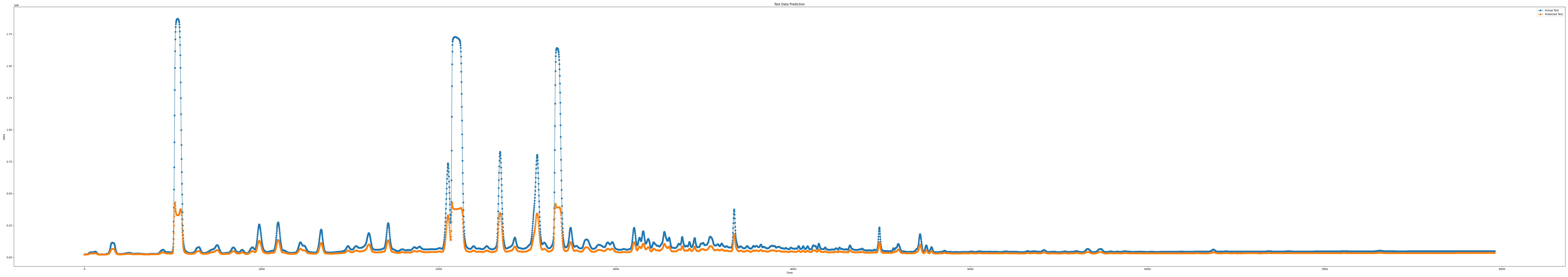

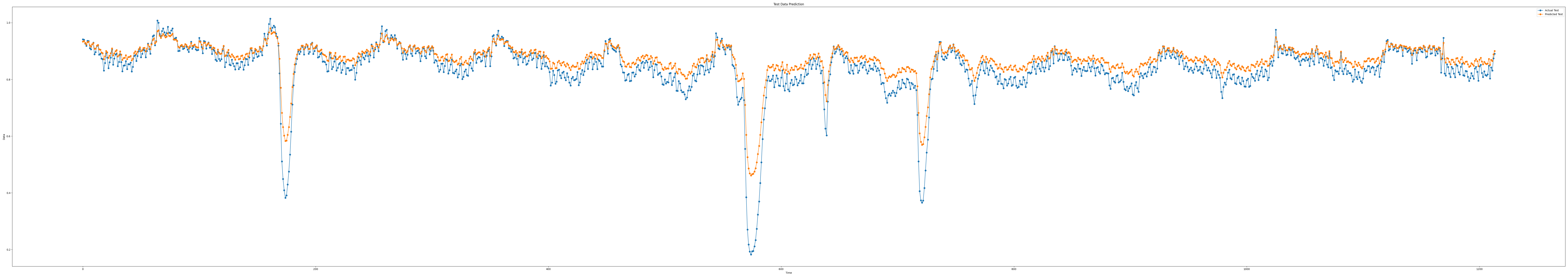

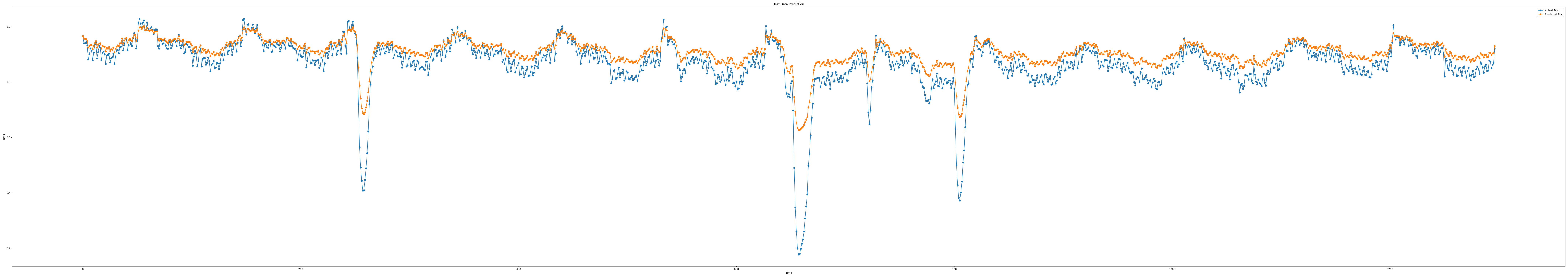

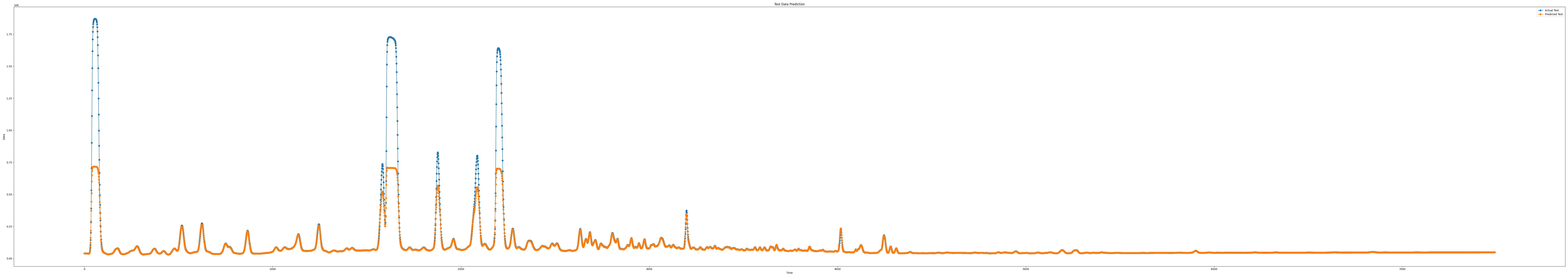

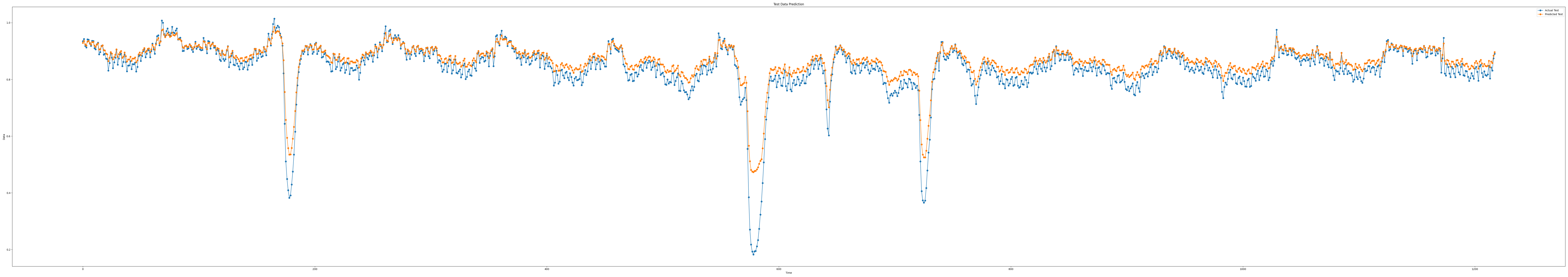

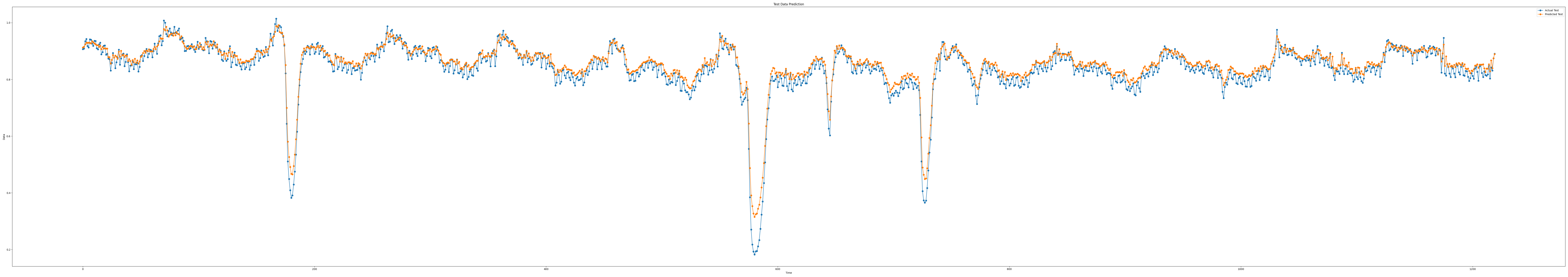

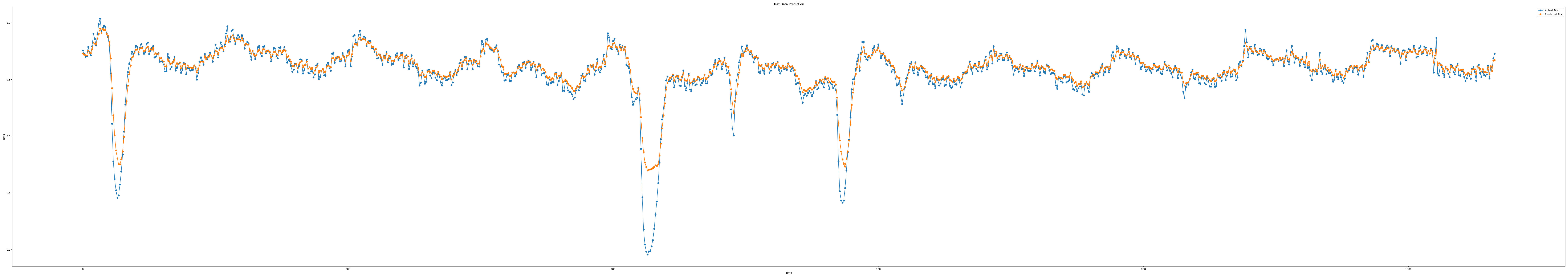

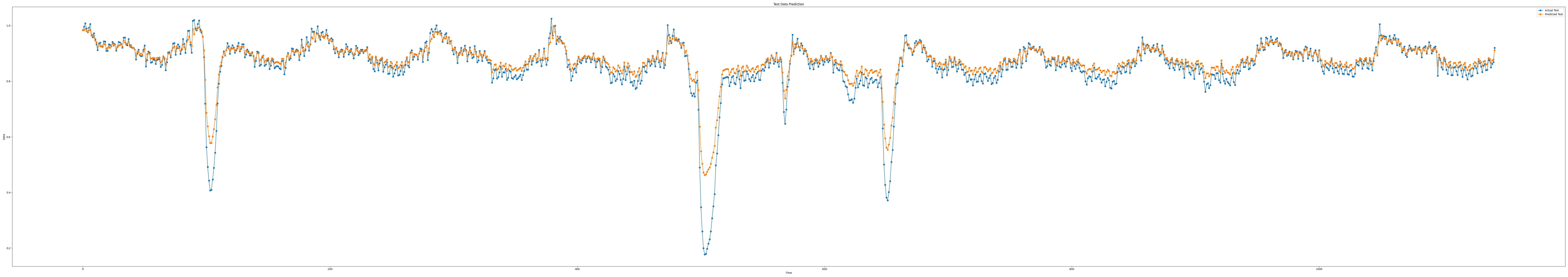

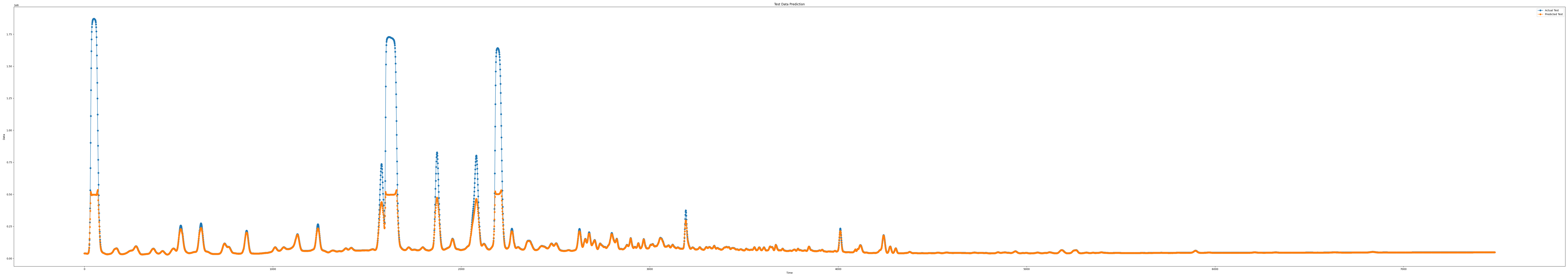

# 查看模型效果

TCN 配置如下：

	model_params = {
	# 'input_size',C_in
	'input_size': input_size,
	# 单步，预测未来一个时刻
	'output_size': label_length,
	'num_channels': [16] * 2,
	'kernel_size': 2,
	'dropout': .0
	}
